NTSMP8654 Reference Board
NTSMP8654 Reference Board
Hight Performance SoC Platform for Networked CE Development

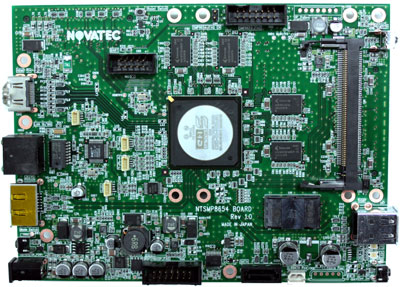

NTSMP8654 is a reference board for Sigma Designs SMP8654 media processor. The board includes most peripherals on board,
but is also designed so that almost all of the signals can be accessed through the user function interface, which enables customers
to use the full potential of the processor in their system design.
NTSMP8654 can be used for evaluation, developing applications, and a platform to develop software until the final hardware is produced,
which can result to a shortened time-to-market.
| NTSMP8654 Board Specifications | ||
|---|---|---|
| Basic Specifications | CPU | Sigma Designs SMP8654 500MHz |
| Program memory | 128MB NAND Flash ROM | |
| Main memory | 256MB DDR2 SDRAM | |
| Graphics memory | 256MB DDR2 SDRAM | |
| HDD interface | SATA/eSATAk 1 port each | |
| Ethernet | 10BASE-T/100BASE-TX, 1 port | |
| USB port | USB2.0 Host, 2 ports | |
| Serial interface | RS232C 1 channel | |
| Debug connector | JTAG port | |
| AV connector | HDMI x1 (Opt: composite, S-video, component, analog audio, S/PDIF) | |
| IR | 1 channel for remote control (Opt: ZigBee) | |
| External I/O | miniPCI slot 1 port, User Function I/F* | |
| Power supply | DC12V AC adapter | |
| Software Specifications | OS | Linux, WinCE, etc. |
| Applications | AV devices, VoD terminal, amusement devices, etc. | |
Brochure is availabe here.＜NTSMP8654＞
