NTSH7764 Reference Board
NTSH7764 Reference Board
Multipurpose Evaluation Board for SH7764

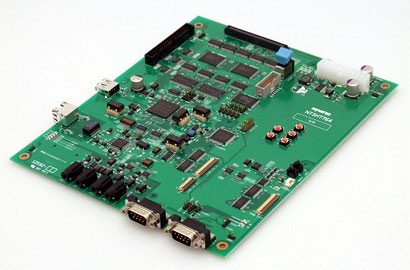

NTSH7764 is a reference board for Renesas Tchnology’s SH7764 microprocessor. This product can be used to evaluate SH7764 microprocessor for various applications including digital audio devices such as HDD audio players and network audio players, multimedia devices such as car navigation systems, and embedded devices for industrial applications. Manufacturers can reduce development costs and shorten time to market by using this board for system prototypes and for developing software until the hardware is completed.
Main Features:
- All features of SH7764 on a 200mm x 240mm board.
- IDE (ATAPI) interface for HDD/CD drives and on-board 1Gbyte NAND Flash memory.
- 1 port 10/100Mbps LAN, 1 port USB 2.0 Host, 2 channels serial interface.
- Audio out x3 channels, audio in x1 channel (mini jack).
- JTAG-ICE debug port.
- LCD controller/RGB output for display purposes.
- Linux boot program and Linux OS stored on flash memory so that Linux development environment will be available upon power on. (Linux drivers for peripheral devices also provided)
This product also implements on-chip debug features so that real-time debug on maximum frequency is possible. JTAG ICE for efficient software debugging can be provided by Sophia Systems.
| NTSH7764 Board Specifications | ||
|---|---|---|
| Basic Specifications | CPU | SH7764 Processor max frequency 294.912MHz, LBUS 98.30MHz) |
| Program memory | Flash ROM 32MByte | |
| Main memory | SDRAM（98.304MHz） 64Mbyte | |
| NAND Flash memory | 1Gbyte | |
| HDD interface | IDE connector （SH7764 on-chip feature） | |
| LAN port | 10BASE-T/100BASE-TX x1 （Using SH7764 internal MAC） | |
| USB port | USB 2.0 Host x1 Type A connector （SH7764 on-chip feature） | |
| Serial interface | RS232C 2 channels （SH7764 on-chip feature） | |
| Debug connector | JTAG port （SH7764 on-chip feature） | |
| AV connector | LCD/RGB display, audio mini-jack （Line Out x3, Line in x1) （SH7764 on-chip feature） |
|
| External I/O | External expansion bus I/F connector | |
| Board size | 200mmx240mm | |
| Power | 100V～240V （power unit not included） | |
| Software Specifications | Supported OS | Linux（Default）, WinCE (to be supported） |
| Applications | Plant controller, vending machines, POS systems, car navigation systems, HDD audio systems, etc. | |
Brochure is available here.＜NTSH7764＞
